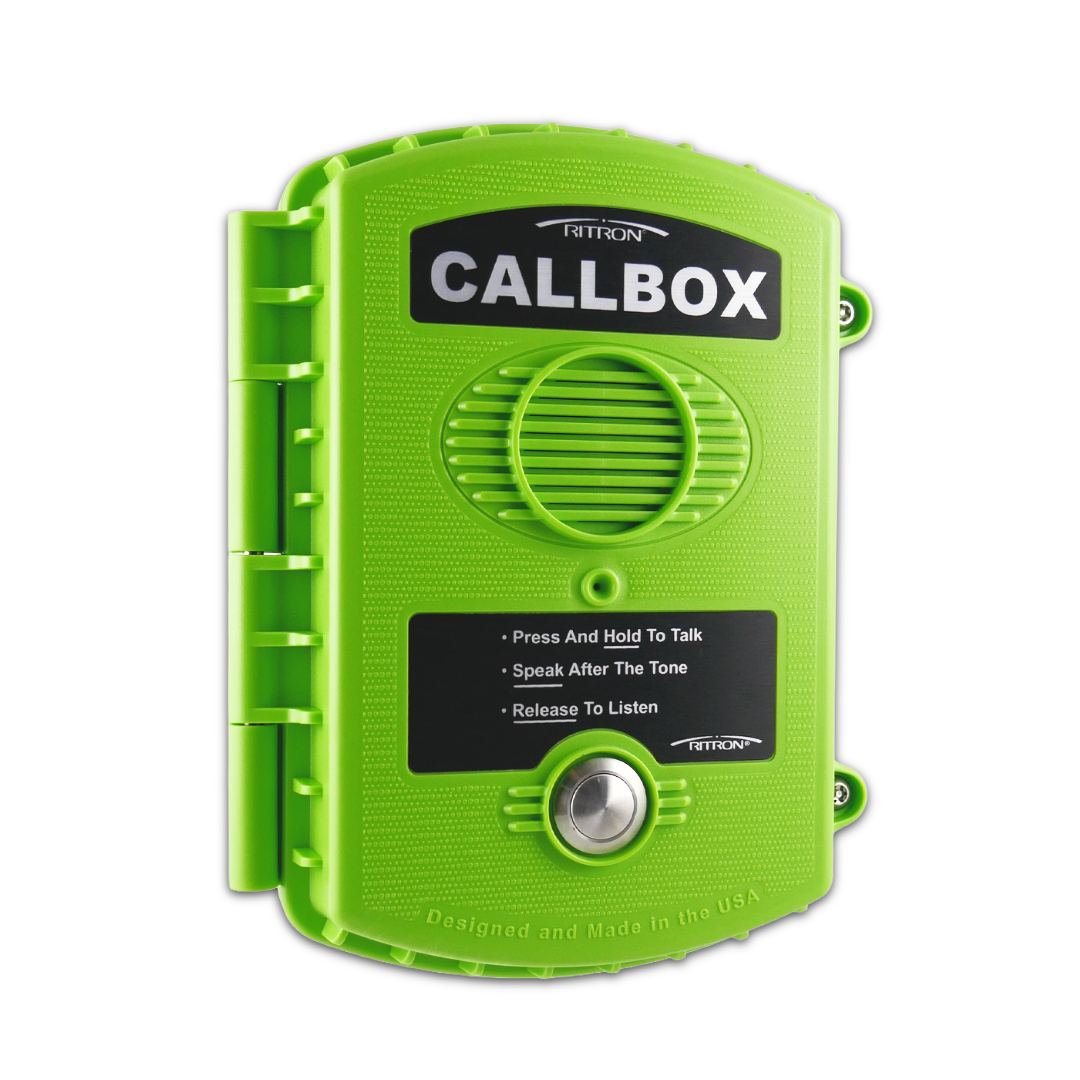

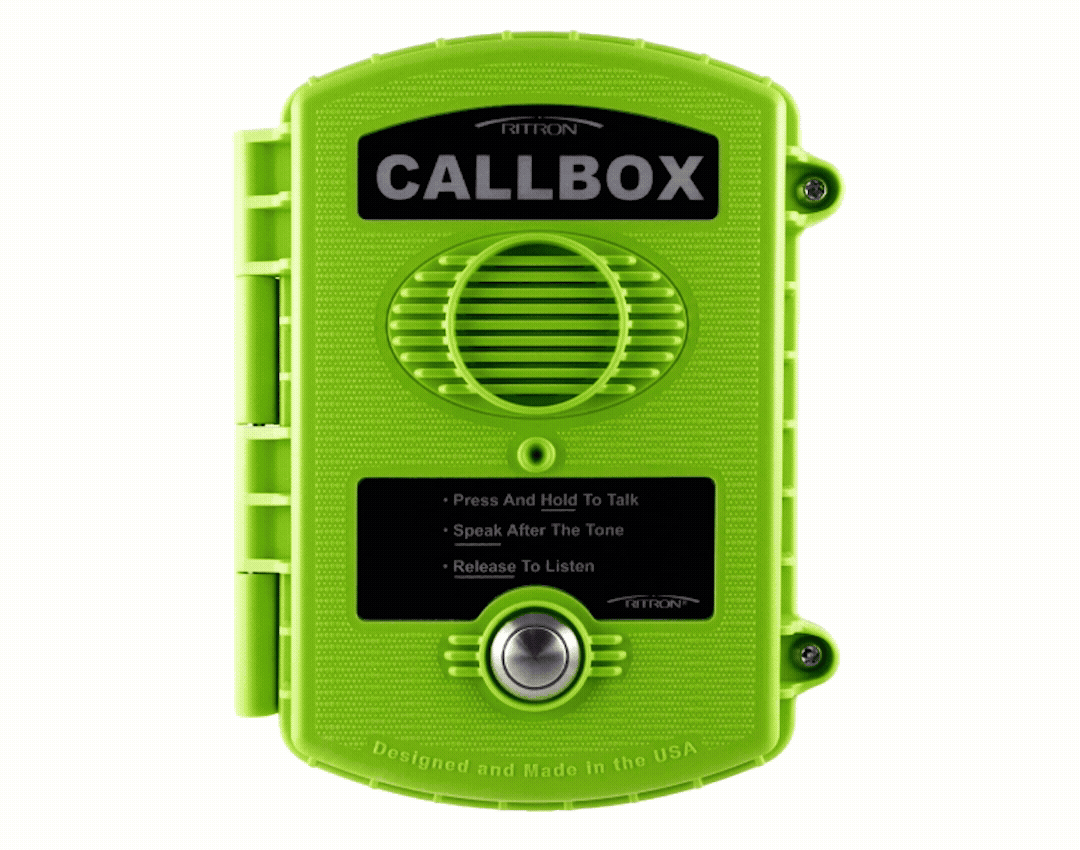

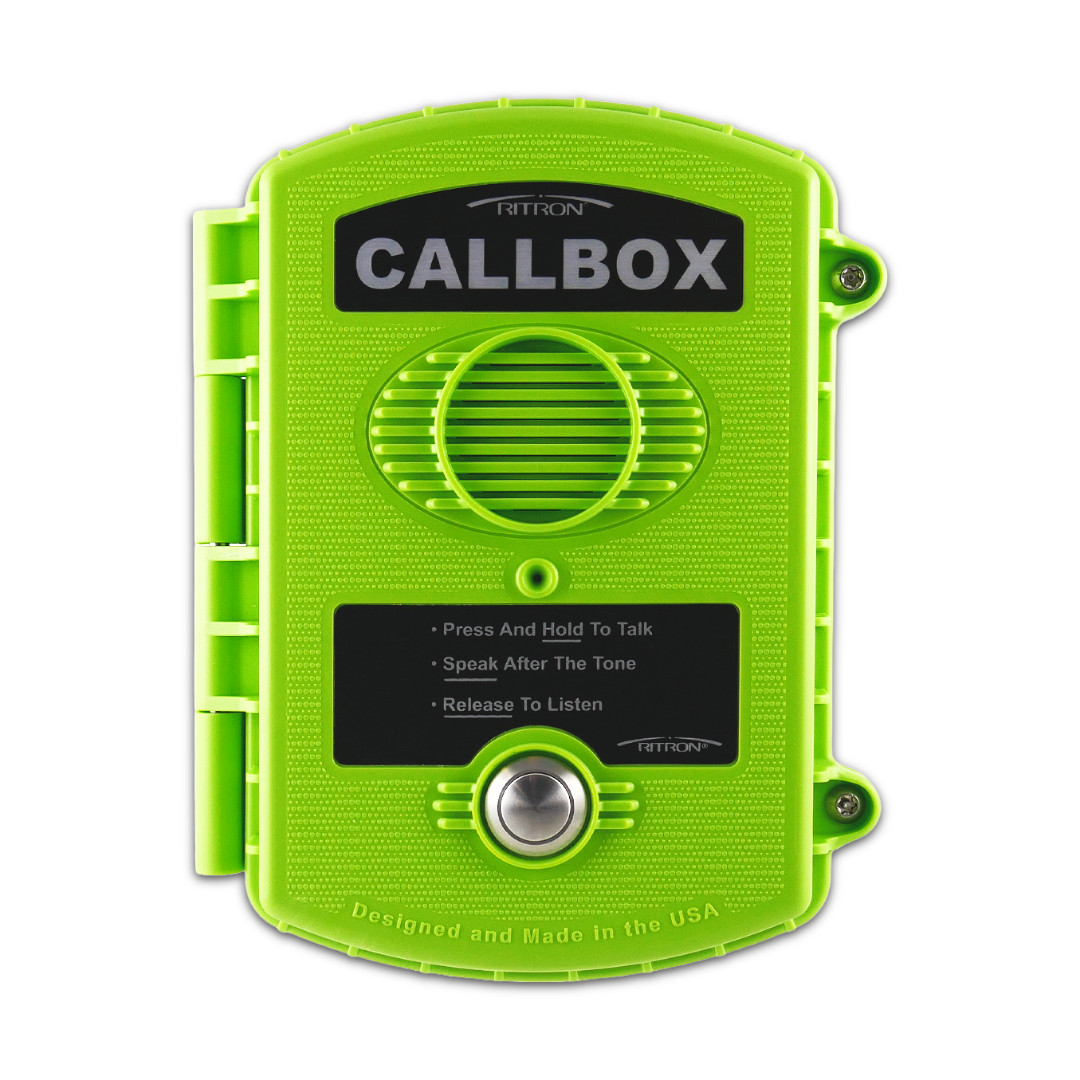

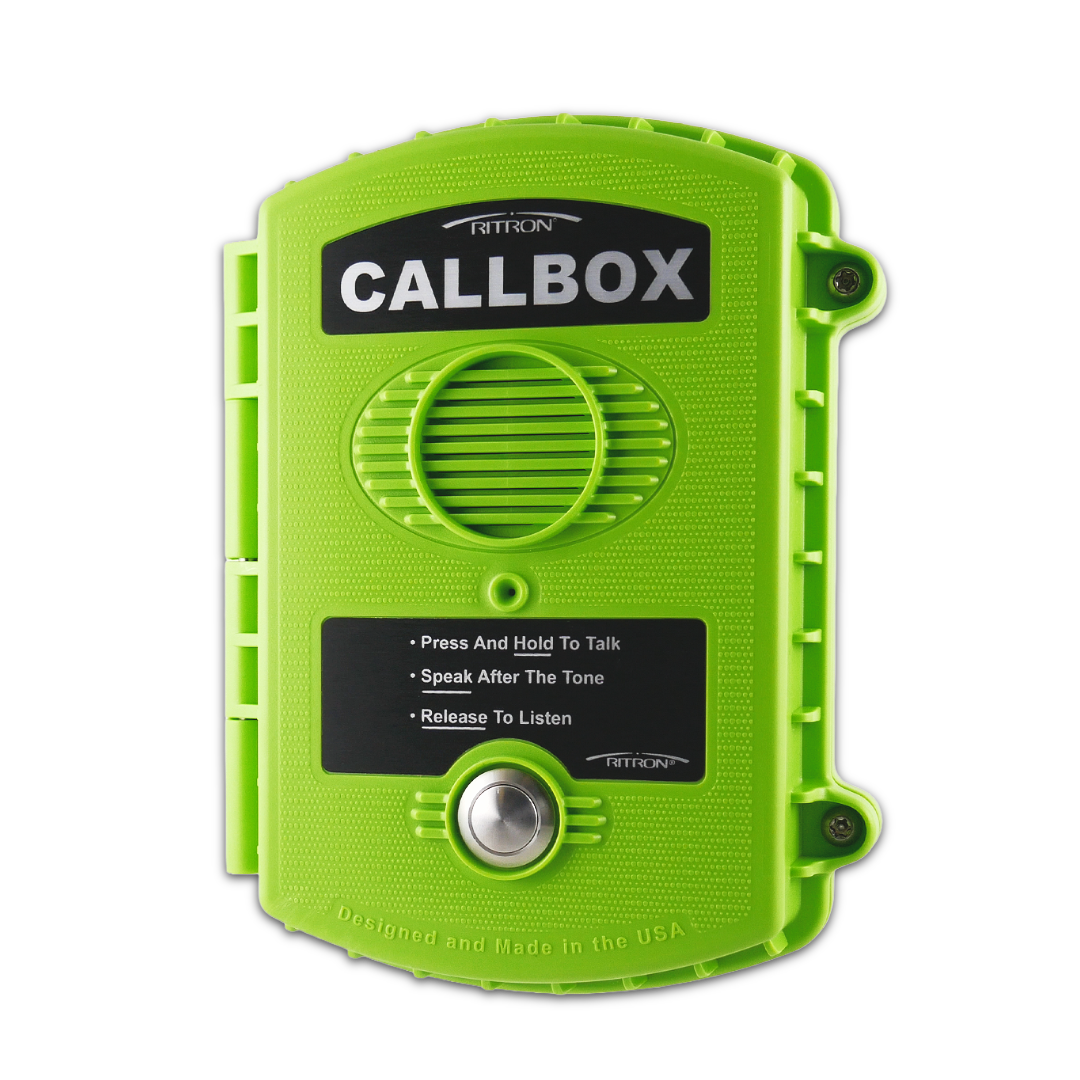

Q Series Callbox – Analog

Q-Series Mounting Bracket Dimensional Drawings:

• RQX CALLBOX DIMENSIONS-B
• RQX-Q-GN DIMENSIONS-A

• Features
  • Wireless, 2-Way, Push-To-Talk, Narrowband Analog Technology
  • No trenching or construction costs to install
  • Available in VHF MURS License-Free frequency band, and license-required VHF 150-165MHz and UHF, 450-470MHz frequency band
  • Business band frequencies, long range performance - up to1 mile* *line-of-sight.
  • Works with any VHF or UHF analog business band 2-way radio
  • Durable, gasket-sealed, high-impact molded, polycarbonate enclosure
  • Tamper and Vandal-Resistant, Internal Antenna, Long-Life, Machined Aluminum PTT Button
  • Battery* Powered For Stand-Alone Operation or External Power for Always-On Operation. *For optimal performance in battery only applications, Auto Turn-Off should be enabled.
  • Adjustable Volume, High-Audio Output, Provides Easy To Hear Audio In High Noise Areas
  • User Adjustable field-programmable settings.
  • PC programmable
  • Built-in relay control (Series 7 model only) allows long-range, remote control of gates or doors or use with optional flashing strobe light.
  • Standard Flange Mount Hole Pattern Easy Installation. Optional Mounting Brackets Available
  • Available In Different Enclosure Colors:  High-Viz Green and Black
  • Call Ritron regarding custom colors for volume applications
  • Designed and Made in the USA
• Specs

  Models	Description –Analog, Conventional	Tx Pwr Using 3 D-Cells	TX Pwr Using Ext 12VDC Pwr	Includes Built-In Relay,Stored-Voice Msg,Sensor Switch Inputs
  RQX-111M	VHF MURS	700mW	2 Watts	no
  RQX-111M-BLK	VHF MURS	700mW	2 Watts	no
  RQX-117M	VHF MURS	700mW	2 Watts	yes
  RQX-117M-BLK	VHF MURS	700mW	2 Watts	yes
  RQX-117	VHF, 150-160 MHZ, Part 90 Freqs, Hi-Viz Green Housing	700mW	2 Watts	yes
  RQX-117-BLK	VHF, 150-160 MHZ, Part 90 Freqs, Black Housing	700mW	2 Watts	yes
  RQX-411	UHF, 450-470 MHZ, Part 90 Freqs, Hi- Viz Green Housing	700mW	2 Watts	no
  RQX-411-BLK	UHF, 450-470 MHZ, Part 90 Freqs, Hi-Viz Black Housing	700mW	2 Watts	no
  RQX-417	UHF, 450-470 MHZ, Part 90 Freqs, Hi-Viz Green Housing	700mW	2 Watts	yes
  RQX-417-BLK	UHF, 450-470 MHZ, Part 90 Freqs, Black Housing	700mW	2 Watts	yes

  • RF Channels:1 Channel Analog(12.5KHz)
  • Signaling: CTCSS & DCS Encode/Decode, DTMF Encode/Decode, SelCal Encode/Decode, 2-Tone Decode Only
  • Dimensions:  7” H x 5” W x 3” D
  • Weight: 2.75 lbs
  • Enclosure Material: Gasket Sealed, High-Impact Polycarbonate
  • Colors: Black or High-Viz Green
  • Environmental: Splash resistant, shock and vibration per Ritron test
  • Operating Temperature: -20°C to +55°C (-4°F to 131°F) Battery rating. At 0°C the capacity is < 50% rated) Talk range will decrease at low temperatures when operating on alkaline batteries.
  • Programming: Field programming capability of limited parameters. Full programming capability using internal USB Connector used for full PC Programming.
  • Built-in Remote Control Relay(7 Series): Can be used to remotely control gates, doors or strobe light. (7 Series) Relay switch is controlled when callbox receives the pre-programmed selective signaling command code.
    • SPDT, 3A, 125VAC/30VDC – Normally Open or Normally Closed (NO Default). Modes of Operation: Momentary or Toggle, On/Off.
    • Aux Sensor Monitoring Input : Optional sensors used to detect motion, gate movement, vandal/tamper or vehicle presence can be connected to the callbox using the sensor input.
    • Sensor input responds to an Open or Closed switch. Callbox will send either an alarm tone or a recordable voice message when optional switch/sensor detects a change.
    • Can also be programmed to automatically turn callbox ON and transmits recordable voice message or alarm tone to radios monitoring callbox activity.
  • Adjustable Speaker Volume: Adjustable 20% to 100%
  • Automatic Turn-Off Feature: Conserves batteries. Selectable turn-off times will automatically turn callbox off after a set period of inactivity on the radio channel. Auto Turn-OFF feature must be enabled when using battery only power.
  • Listen-In Feature: Callbox can be selectively paged to allow remote monitoring of audio in the vicinity of the callbox.
  • Busy Channel TX Inhibit: Prevents Callbox from transmitting if someone else is using the radio channel.
  • Recordable Voice Messages: Greeting Message/Send Call Alert Message/Sensor ON/Sensor OFF/ Low Battery Message/Send Power Fail Message/Auto “Re-Send” - Selectable 0-5 times.
  • Battery Life: 3 D-Cell Alkaline Batteries: Number of Transmissions: Approximately 6,000 based on a duty cycle of: 3 Seconds Receive, 3 Seconds Transmit, 10 Seconds Standby
• Accessories
  • RAM-1545: Dual-Band VHF/UHF magnet-mount antenna w/ 20ft. RG-58 coax/BNC (requires opt. cable #60201125)
  • R-STROBE: Blue Strobe Light, 120 VAC, 1 Amp
  • RPS-EXPO: AC Adapter only, 110VAC - 12VDC, external power supply
  • RPS-EXPO-PLUS: External Power kit for the Q Series Callbox
  • RSS-100: Solar Power System - Includes: RK-RQXMB: Mounting Brackets for Q Series Callbox Enclosure
  • RQX-PCPK-1: PC Programming Kit
  • RQX-PCPS-1: PC Programming Software - CD Only
  • 60201119 Cable: Programming Cable, PC to radio callbox - 5-Pin USB to mini-USB.
  • RK-RQXMB: Mounting Brackets for Q Series Callbox Enclosure
