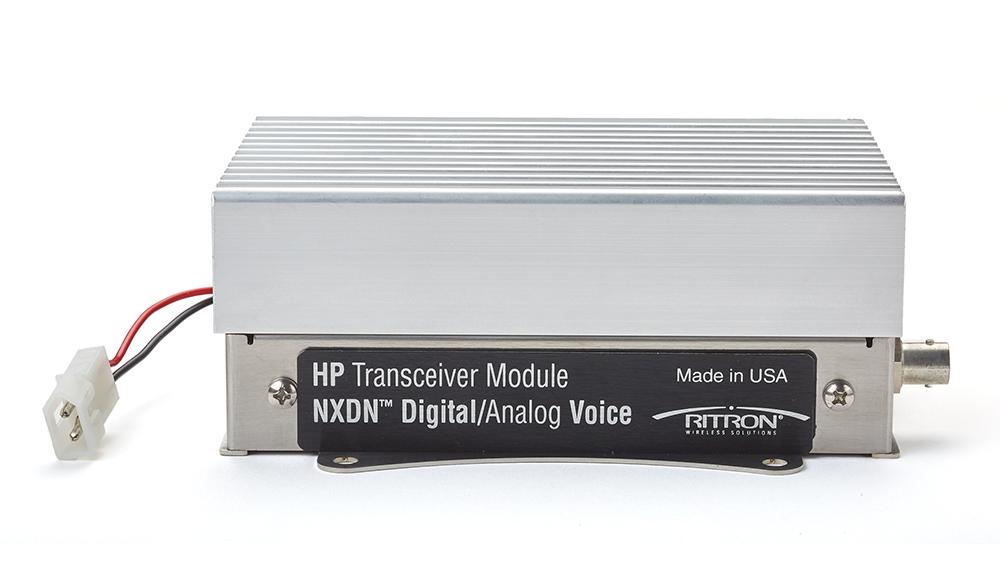

DTX+ HP High Power NXDN Digital Voice / Analog Voice Transceiver
Radio Modems & Digital Transceivers, High Power NXDN Digital & Analog Voice
The high power versions of the 60 Series NXDN/Analog Voice Modules are ideal for any system that is using the 6.25 kHz NXDN protocol for digital voice and/or is currently using analog voice, but is contemplating a transition to NXDN digital. In addition to supporting NXDN digital voice, the modules can also support limited NXDN data messages.
Although primarily a voice module, both analog and digital the programming pin of the module’s 15-pin connector does allow for limited data messages to be sent to and from the module for transmission/reception. As with all of the 60-series modules, the NXDN versions are FCC/IC refarming compliant.
- Ultra Narrow Band Digital Voice (6.25KHz), Narrow Band Analog Voice(12.5KHz)
- Broadband TX/RX Design
- 38MHz @ VHF, 28 MHz @ 220 MHz, 20 MHz @ UHF
- High Power Transmitter – 5-30 Watts
- DSP Audio Processing For Cleaner Data Transmission
- Compact Size (3.6” L x 2.3” W x 1” H)
- Limited NXDN Data Support
- Optional Fan Kit For Continuous Duty Applications
- Compatible with Kenwood Transparent Data Mode
- Ultra-Fast Tx/Rx Attack Times
- Programmable Output Power
- Programmable Electronic Settings and Adjustments
- Designed and Manufactured in the USA
