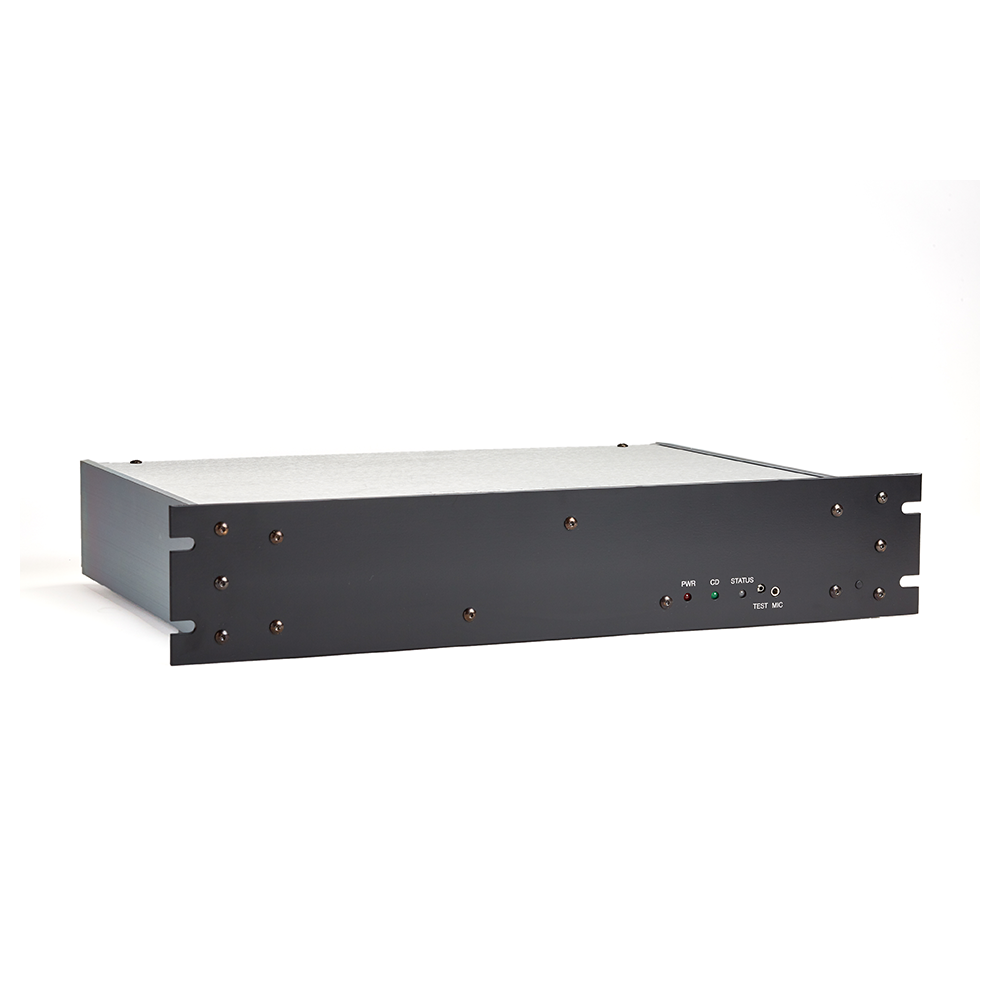

UHF RRX Series Repeater - Full Duplex, Analog, 1-8 Watt Model, Rack Mount

• HIGH PERFORMANCE SPECIFICATIONS - A temperature compensation circuit (TCXO) ensures frequency stability and accuracy during ambient temperature changes.
• SYNTHESIZED AND PROGRAMMABLE - Programmable features include TX & RX Frequencies, Coded Signalling, Hang-Time Timer, Time-Out Timer, and Morse Code Station ID. (Tuning of the duplexer and TX and RX module may be required.)
• RUGGED RACK STYLE DESIGN - Rugged, lightweight aluminum housing is perfect for equipment room installations or 19” rack mounting at a repeater site.
• SIGNALLING CAPABILITY - Standard signaling includes CTCSS (1) or DCS(2) encode/decode. Optional plug-in, dip switch programmable CTCSS tone modules increase the capability from one to four CTCSS tones.
• CONTINUOUS DUTY OPERATION - The RRX is designed for continuous duty operation at 8 Watts.

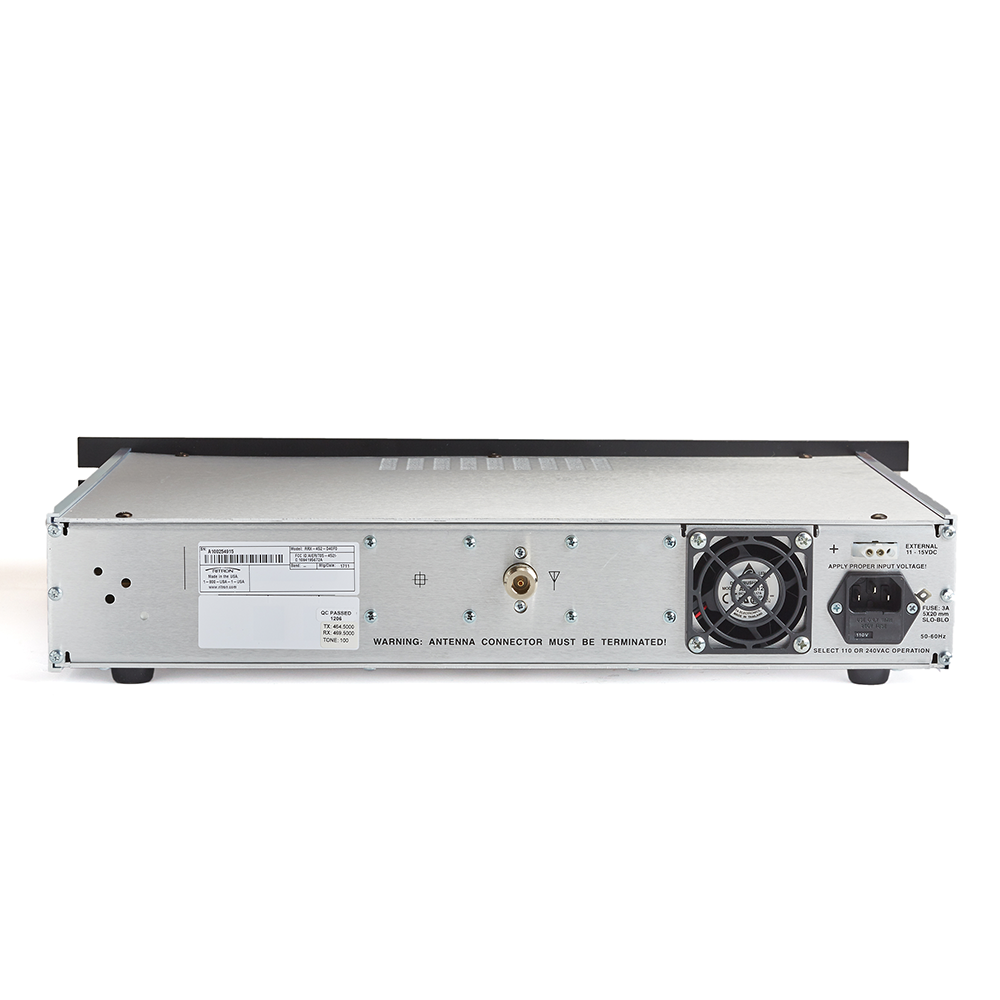

• 12VDC COOLING FAN - Internal 12VDC fan keeps the electronics cool during operation. It may be programmed to run continuously or upon transmitter activation.
• BATTERY CHARGE AND AUTOMATIC CUTOVER - Powered by a 110 VAC or 240 VAC selectable power supply or a 12VDC source, the RRX is ideal for domestic or international applications. An emergency back-up battery can be trickle charged during normal operation and will immediately go on-line if an AC power failure occurs.
• INTERNAL DUPLEXER - Includes an internal, four cavity, extruded aluminum, “notch type” duplexer. Purpose built Ritron design for 50 Watt power levels or less.
• ACCESSORY CONNECTOR - Allows the RRX to be connected to and controlled by other devices such as tone panels, trunking controllers, and control stations.
  • “N” Type Connectors Now Standard
  • 1 - 8 Watt Watt Model
  • High Performance Specifications
  • Built-in TCSS or DCS Signaling
  • Narrow Band (12.5KHz) Operation
  • Selectable Input Voltage 110/240 VAC, 50 - 60 Hz
  • 12VDC Operation with Battery Charge and Automatic Battery Cut-Over
  • Local Radio Test Capability
  • Telephone Interconnect Option
  • Designed and Made In U.S.A.
