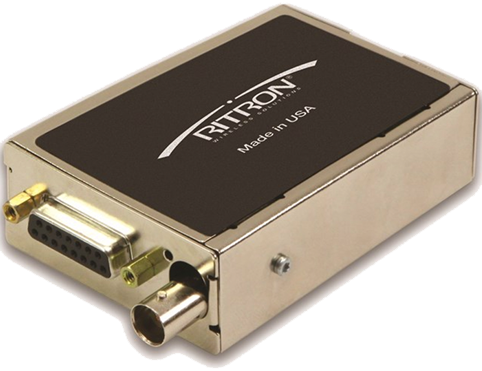

DTX+ 60 Series Analog Telemetry Transceiver
Analog Telemetry Transceiver, DTX+ 60 Series
The DTX+ Series is ideal for any system design where high performance RF specifications, fast TX/RX attack times, and compact size are a requirement. High specifications permit integration into systems demanding the utmost performance in congested frequency environments.
This compact design makes the DTX+ Series perfect as a retrofit to legacy RNet and JSLM installations. Direct modulation with low distortion and low group delay result in a low bit-error-rate (BER) for enhanced system integrity and reliability. The Swift Lock synthesizer-loading algorithm reduces unit turn-on-time to less than 10ms for high-speed data throughput rates, and Controlled Envelope keying reduces adjacent channel “keyclicks”, resulting in spectrum-friendly operation.
Capable of 6.25kHz and 12.5 kHz channel spacing operation, the DTX+ Series can be installed in systems where refarming compliant narrow band frequencies have been assigned. For high performance, reliable and cost-effective wireless data solutions you can trust Ritron.
Designed and Made In The USA
- Narrowband or Wideband Models
- Supports 8 Programmable Channels
- Low Standby Current
- Selectable Power Settings 5W/2W VHF/UHF
- Low TX Current
- 0.7 Watt Audio Output
- Fast TX & RX Attack Times
- Closed-loop RF Power Control
- FCC Certified Board Only or With Enclosure
- Surface Mount Technology, Single Board Design
- Designed & Manufactured in the USA
