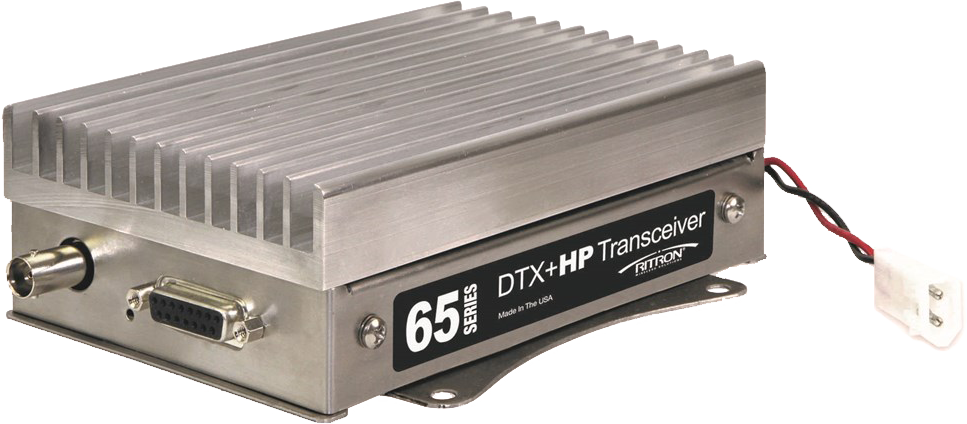

DTX+ HP High Power Analog Transceiver
Analog Telemetry Transceivers
HP High Power Series
The High Power DTX+ HP Series is ideal for any system design where high performance RF specifications, fast TX/RX attack times, and high power or range are a requirement. High specifications permit integration into systems demanding the utmost performance in congested frequency environments.
Direct modulation with low distortion and low group delay result in a low bit-eror-rate (BER) for enhanced system integrity and reliability.
The Swift Lock synthesizer-loading algorithm reduces unit turn-on-time to less than 10ms for high-speed data throughput rates, and Controlled Envelope keying reduces adjacent channel “keyclicks”, resulting in spectrum-friendly operation.
Capable of 6.25kHz and 12.5 kHz channel spacing operation, the DTX+ HP Series can be installed in systems where re-farming compliant narrow band frequencies have been assigned.
Designed and Made In The USA
- High Power Capability 5-30 Watts All Models
- Wide Band (25KHz) (International only)
- Narrow Band (12.5 kHz)
- Very Narrow Band (6.25 kHz) Models
- Broadband TX/RX Design: 38 MHz @ VHF, 28 MHz@220 MHz, 20MHz @ UHF
- DSP audio processing for cleaner data transmission
- Frequency Stability Standard @ 1.0 ppm
- Ultra Fast TX/RX Attack Times
- Controlled Envelope TX Keying
- Dual Transmit and Receive Audio Paths
- Frequency Ranges: **
- 136-174 MHz VHF
- 217-245 MHz VHF
- 380-400 MHz UHF
- 148-174 MHz UHF
- 400-430 MHz UHF
- 450-470 MHz UHF
- Meets FCC and IC (Canada) Standards ***
- Programmable Output Power
- SMD Component Design
- Custom Frequency Ranges Available
- Designed and Manufactured in the USA
*Wideband (25KHz) model available by special order only and where allowed by appropriate regulatory authorities.
** Contact Ritron with your specific frequency band requirement.
*** Certain models listed have not been approved by the FCC. This device is not, and may not be, offered for sale or lease, or sold or leased until approval by the FCC has been obtained.
